Gn Flow Meter is a leading manufacturer of microfluidic measurement and control instruments.

Quality Flow Meters Company 1
Quality Flow Meters Company 1

Quality Flow Meters Company

Inquiry
Send your inquiry

Company Advantages

· The product catches up with the market trends and creates benefits to customers in the industry.

· The product has passed many international certificates, its quality can be assured.

· With superior quality and flow meters, Shanghai Cixi Instrument Co. Ltd wins warm praise from customers.

Features

Wide measuring ranges

LCD

High precision
Low pressure dropSmall sizeFast response

Technical Data

Model Number: CX-OCFM

Accuracy: ±5%

Flux range: 0~9999999

Instant flux: 10L/s~10m3/s

Output: 4-20mA,RS485/232,4 relays

Material: ABS

Work voltage: AC220V/DC12~24V

Display: mechanical

Flow Integrating Instrument Wide range of applications

High precise, non-touching level measurement.Without  impact on flow velocity. Low sensor power consumption,easy installation  and orientation,application wildly.

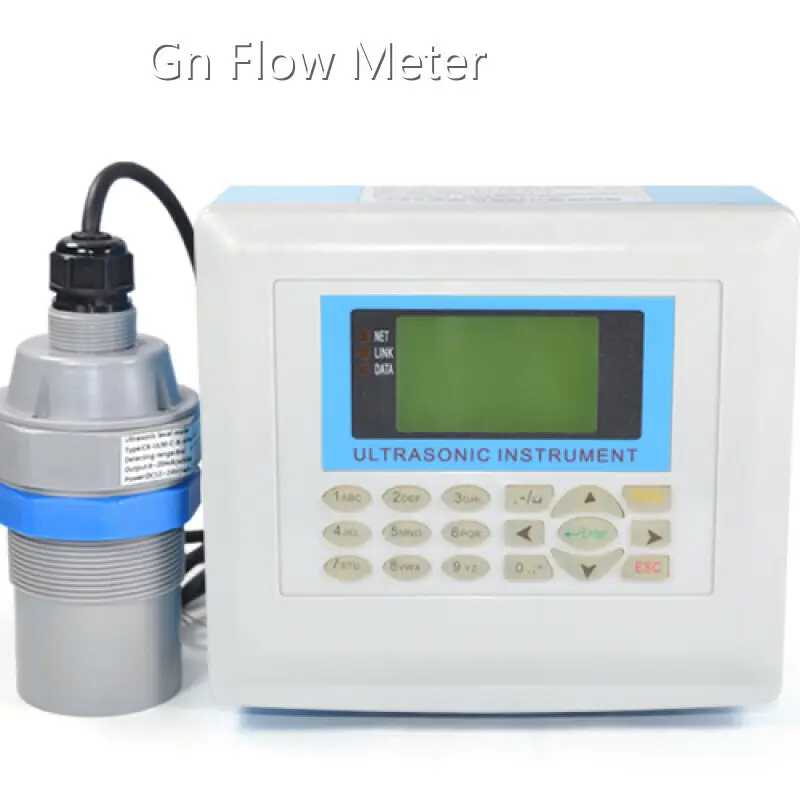

Ultrasonic open channel flow meter is a high accuracy flow ins- trument which is used the principle of ultrasonic measuring Ven- turi canal or Parshall fume. it measure the time of reflected back  after sound wave contact to channel water, then according to  the formula figure out channel flow, it can provide flow output,  display flow velocity and total flow.

Ultrasonic non-contact  Liquid level measurement does not  affect the flow rate at all, and the  accurate liquid level measurement  is an ideal liquid level meter.  Probe type optional According to the requirements  of the working conditions, the  probe can choose special  products such as IP68,  anti-corrosion, explosion- proof, small blind area high  precision, ultra-low power  consumption, large range  and so on.

The instrument supports (4~20) mA, RS-485 data  transmission (RS-485 interface has  been installed in the instrument) Electrical interface The electrical interface is not easy to age  and crack, waterproof and dustproof

Real-time high-definition display, instantaneous flow, liquid level,  cumulative flow information. With historical flow recording function,  it can record the past 60 hours, 30 days, and 12 months,10 years of  flow data, and real-time record data through SD card.

Ultrasonic open channel flow meter is a high accuracy flow instrument  which is used the principle of ultrasonic measuring Venturi canal or Parshall flume. It measure the time of reflected back after sound wave  contact to channel water , then according to the formula figure out channel flow, it can provide flow output, display flow velocity and  total flow.     1. High precise, non-touching level measurement. Without impact on  flow velocity. 2. Low sensor power consumption,easy installation and orientation, application wildly. 3. Widely used in wall hanging right-angle rectangular weir, triangular  weir, parshall flume and so on.  4. Easy operation, no need to calibration the input signal, only few  parameters should be set. 5. Full functions, 2 line relays output, easy to connect actuating  mechanism such as motor, Warner. 6. Flow integrating instrument possess data storage. When power off  it can save 10 years. Data can be also saved by SD card. 7. According to condition , sensor can choose anti-erosion, anti- explosion, small blind area,ultra low power consumption or wild range 8. Base on user’s demand,it can attach flash disk、micro printer  and storage battery .

(1)Flux range :0~9999999 (Full eight cleared and the cumulative  number plus 1) (2)Instant flux: 10L/s~10m3/s(based on wire type and size) (3)Accuracy:5% (4)Sensor range: 2m、5m、8m、10m(2m is standard, according condition other range is optional) (5)output(optional):4-20mA / RS485/232(Modbus)/ 4 relays  (AC:5A 250V DC:10A 120V) (6)work voltage:AC220V or DC12~24V (7)consumption:<3W (8)material:ABS for instrument、ABS for sensor (9)optional item when order: MiniSD data collect 、GPRS/GPS、 micro-printer.

Quality Flow Meters Company 10

Quality Flow Meters Company 11

Quality Flow Meters Company 12

Downloads


Company Features

· Shanghai Cixi Instrument Co. Ltd develops from a sole production processing company into a comprehensive enterprise that integrates R&D, designing, manufacturing, and selling of flow meters.

· Expect the work of our professional staff, the advanced machine also contributes to the quality assurance of flow meters. Through the strenuous work of our experienced technicians, our company is able to guarantee the quality of flow meters.

· The share of Gn Flow Meter in domestic and foreign markets has gradually expanded. Get quote!


Application of the Product

The flow meters developed and produced by our company can be widely used in various industries and professional fields.

Gn Flow Meter has been engaged in the production of for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.


Product Comparison

Gn Flow Meter guarantees to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.


Enterprise Advantages

Gn Flow Meter's elite teams are comprised of passionate and excellent staff who make a great contribution to corporate development.

With the service concept of 'customer first, service first', Gn Flow Meter constantly improves the service and strive to provide professional, high-quality and comprehensive services for customers.

Gn Flow Meter firmly believes that quality creates brand and technology builds future'. In addition, we are honest, pragmatic and innovative, which is aligned with the enterprise spirit. With a focus on brand development, we strive to improve brand reputation and core competitiveness. We sincerely provide quality products and services for our customers. We promote the healthy and sustainable development of the industry.

Founded in Gn Flow Meter has adhered to integrity and fair competition for many years. This contributes to the trust and favor of the majority of customers.

Gn Flow Meter has established trade relations with many companies at home and abroad.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
no data


Shanghai Cixi Instrument CO.,LTD was founded in 2008 and is located in Shanghai Songjiang industrial park. We are the professional flow meter manufacture who integrate R&D, production and sales as one manufacturers.
