Product details of the flow metres


Product Information

Gn Flow Meter flow metres is designed with the latest technology and suitable for use in various environments. Variety of flow metres enhances the user experiences. Our company provides different types of flow metres for your selection.

Features

Wide measuring ranges

LCD displayl

High precision
Low pressure dropSmall sizeFast response

Technical Data

Model Number: CX-HUFM-100

Accuracy: ±1%

Maximum working pressure: 0.6MPa

Communication: RS232 interface

Protection grade: IP65

Measuring pipe diameter:DN15-6000mm

Repetition: ±0.2%

Unit of measure: 0-120℃

ULTRASONIC FLOWMETER

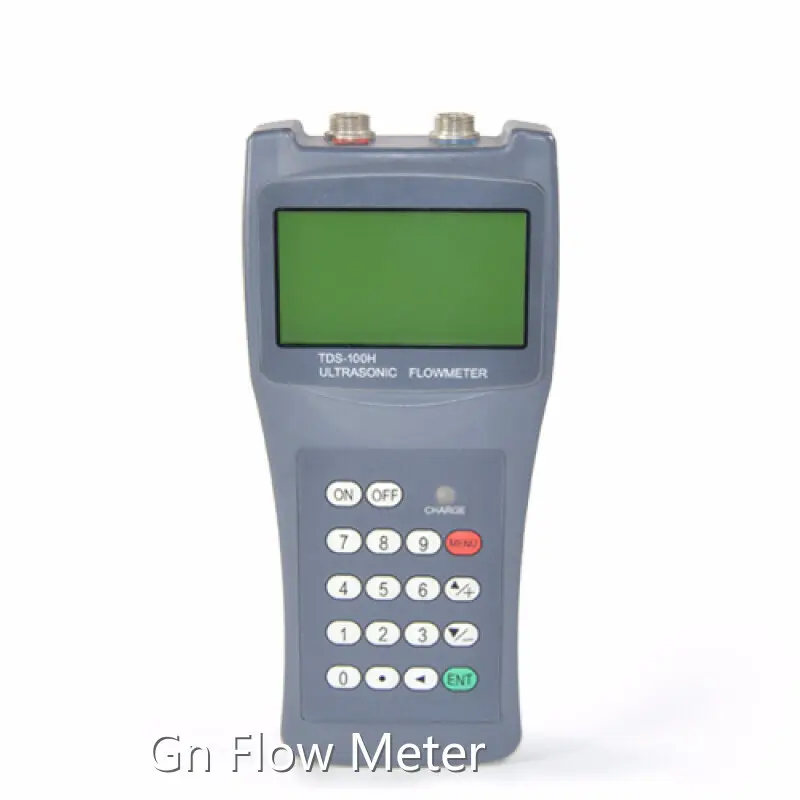

Hand-held ultrasonic flowmeter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size, convenient carrying and accurate measurement.

When the ultrasonic wave propagates in the liquid, the flow rate of the liquid changes slightly with the propagation time. The change in the propagation time is proportional to the flow rate of the liquid. When the flow rate is zero, the time required for the two sensors to generate and receive sound waves is exactly the same (the only Time measurement technology of zero flow), when the liquid is flowing, the transmission time of the sound wave in the upstream direction is longer than the transmission time of the sound wave in the downstream direction.

It can display instantaneous flow, total flow, velocity and other parameters at the same time.,RS232 interface, connect with computer to realize real-time data collection, built-in rechargeable battery.

Small sensor dn15-100mm Medium sensor dn50-700mm Large sensor dn300-6000mm,Handheld sensor dn50-700mm Handheld sensor dnDN15-100,Insert type B sensor more than 80mm,Sensors below Dn40 (including Dn40)  are π type pipe section type

Standard aviation plugs are used for quick connection, respectively  upstream and downstream sensor jacks, to achieve quick disassembly  and assembly.

TDS-100H is widely used to measure liquid flow in various indus tries  thanks to itsadvantages such as smart body,high accuracy,good  repeatability,long-runningcell,easy operation,built-in printer etc.  The flowmeter is very popul ar in industry likepetrochemical, water, power,energy monitoring etc. It's exported to Japan, Korea, Australia,America etc.,Accuracy: +1% Repeatability: +0.2% Easy to install outside the pipe 4 line display: Instantaneous flow rate,Accumulate flow,status Standard interface RS232 for data output and on-line operation Self-diagnose to show the current status Built-in Nickel-hydrogen cell supports 10 hours of operation

Pipe size(DNJ 15-100 50-70D 15-100 50-700 300-6000

ULTRASONIC FLOWMETER(图9)

ULTRASONIC FLOWMETER(图10)

ULTRASONIC FLOWMETER(图11)
