Gn Flow Meter is a leading manufacturer of microfluidic measurement and control instruments.

Bulk Flow Instument Flow Instument Company 1
Bulk Flow Instument Flow Instument Company 1

Bulk Flow Instument Flow Instument Company

Inquiry

Product details of the flow instument


Product Description

We manufacture Gn Flow Meter flow instument using high-grade materials sourced from reliable vendors. The features of higher quality, stable performance, and longer service life makes the product more competitive in the market. Seeing from the growing sales, the product has a rather promising application potential.

Features

Wide measuring rangesMicroHigh precision
Low pressure dropSmall sizeFast response

Technical Data

Model Number: CX-F7

Accuracy: 0.5%

Working pressure: 3MPa

Material of base: 316L

Flow range: 30~3000slm

Glad hand:Φ3/Φ6/Φ10/1/8〞/1/4〞/3/8〞

Power: DC +15V/24V

Digital value: RS485 MODBUS

Used to accurately measure and control the mass flow of gas

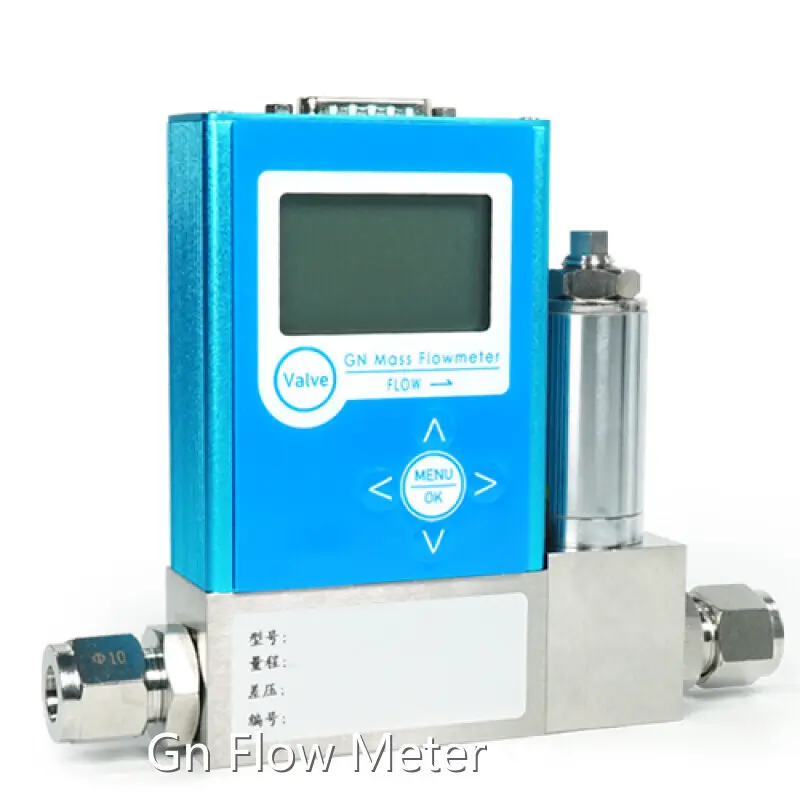

The digital type is the left side style, with LCD display,  instantaneous and total flow, pressure, temperature can be  displayed at the same time and can be equipped  with RS485/232, the MODBUS protocol analog type is  the right side style, without digital display and no  communication function

The range ratio of the flowmeter is 1:100, the valve control range of the controller is 1:50 the minimum can measure 2SCCM and the maximum can measure 3000SLM

The base material of the flow meter controller is S316L, and the material  that contacts the gas is also SS316L. It can measure some weak  corrosive gases. When measuring other strong corrosive gases  and organic solvent gases, it should be  declared when ordering.

The standard accuracy of gas mass flowmeters is 0.5%. 1.0% of reading, and the repeatability of 0.5%  full scale accuracy is 0.2%. The accuracy of the  controller is 1.0% (full scale accuracy)

The flow range of the miniature gas mass flow controller  is the same as that of the flowmeter, the valve  control range ratio is 50:1, and the  proportional control valve accuracy is 1.0%.

Digital value RS485 MODBUS;Analog value DC 0~5V ,4~20mA

Mass Flow Controller(MFC)Used to accurately measure and control the mass flow of gas. They play an important role in scientific research and production in various fields such as semiconductors and integrated cir- cuit industries,special materials disciplines, chemical industry, and indu- strial, pharmaceutical, environmental protection, and vacuum lamps. Typical applications include: electronic process equipment such as dif- fusion,epitaxy,CVD,oxidation,plasma etching,sputtering,and ion impla- ntation ; and coating equipment, optical fiber smelting, microreaction devices, mixed gas distribution systems, capillary measurement, Gas  chromatographs and other analytical instruments

note: The mass flow meter and mass flow controller are usually calibrated with nitrogen (N2). The unit of mass flow is stipulated as: SCCM (Standard ml/min); SLM(Standard l/min) Standard state stipulates: temperature -----273.15K (0℃);  Pressure -----101325 Pa(760mm Hg) F.S (Full Scale); Full-scale value

Micro gas mass flowmeter(图10)

Micro gas mass flowmeter(图11)

Micro gas mass flowmeter(图12)

Micro gas mass flowmeter(图13)

Micro gas mass flowmeter(图14)

Downloads

Micro gas mass flowmeter Dateiformat P D F
