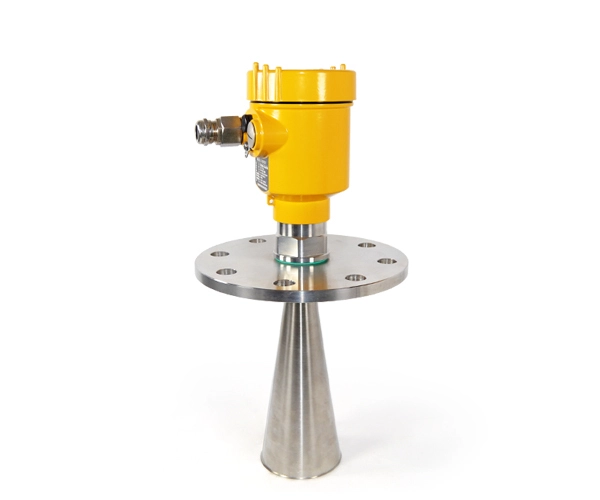

26GHz Radar Level Meter

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.


Wide measuring ranges

LCD displayl

High precision
Low pressure dropSmall sizeFast response

Technical Data

Model Number: \

Process Pressure:-0.1~4.0MPa

Measuring range: 30m

Frequency: 26 GHz

Repeatability: ±3mm

Outer Covering: Aluminum / Plastic / Stainless steel

Signal Output:4~20mA/HART(2-wire/4-wire)


Protection Grade:IP67
